*The accurate price is based on the actual item model

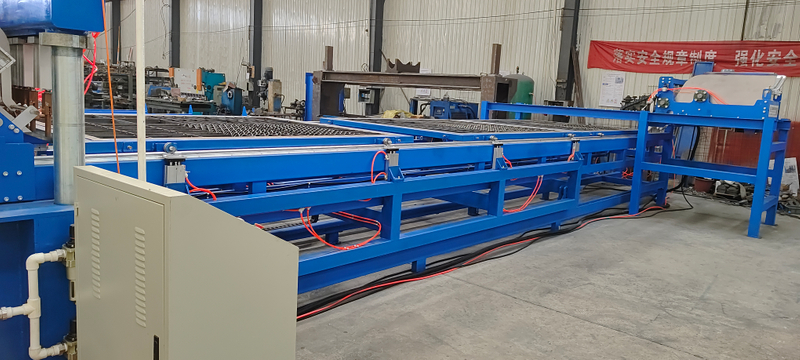

The GWC series CRB600 series steel mesh welding machine is a new and highly automated steel mesh welding equipment developed by our company based on the absorption of advanced electromechanical control resistance welding, fusion welding, and spot welding technology in recent years, combined with the latest research and development in the domestic market.
The steel mesh welding machine adopts a modular structural design, which is more convenient for upgrading and transforming the functional structure, and provides convenience to meet the different needs of customers at different times. According to its structure, it is divided into seven major parts: vertical feeding frame, vertical feeding frame, welding frame, horizontal feeding frame, movable horizontal feeding support frame, movable pulling net frame, and falling net. It has the characteristics of novel structure, firm frame, easy operation and learning, and high cost-effectiveness.
Machine specifications
| Model | 2100/2500/3000/3500 |
| Mesh width | 2100/2500/3000/3500 |
| Wire diameter | 6mm-12mm |
| Cross wire space | 100mm~300mm |
| Line wire space | 100mm~300mm |
| Welding electrode No. | 16/32 |
| Cross wire type | Pre-cut wire |
| Line wire type | Pre-cut wire |
| Welding transformer | 160KVA*5 or 6 |
| Welding speed | 60-80 strokes/min. |
| Diagonal error | ±2mm(mesh sheet of 2 meter length) |
| Mesh output form | Mesh sheet /panel |
| Wire material | Cold rolled ribbed steel bars, cold rolled smooth steel bars, or hot rolled ribbed steel bars |
product type
Company Capability
Pre sales service
1.Our service team takes user needs as the starting point, carefully studies user needs, and provides free technical consultation and model selection.
2.The equipment is designed according to the specific requirements of different customers, considering whether the layout of the customer's house is scientific, whether the production process is rigorous, whether the equipment is in place, and the future market prospects of the product, in order to provide special equipment designs for different customers based on their specific situations.
After-sale service
1. Keep records for each customer, provide long-term supply of spare parts, and deliver them to customers as quickly as possible according to their requirements.
2.After you receive the product, we will send technical personnel to your factory.
3. Then they will guide your workers to patiently install and debug the machine until it can work properly.
4. If there is a problem with the equipment that the user cannot troubleshoot, we will send technical personnel to the user's factory as soon as possible to promptly resolve the problem and resume production.
5. Actively improve practical issues through customer feedback, continuously enhance product and service quality, improve existing products, structures, performance, and quality to meet user needs.
6. When the product is replaced or there are significant improvements, the company will provide timely information to users; Assist in product design and installation system upgrades according to user requirements, and provide modified equipment to meet user needs.
Company Profile
Anping Shenkang Wire Mesh Products Co., Ltd. is located in Anping County, Hebei Province, which is famous for the "hometown of wire mesh" in China, at the intersection of Beijing, Tianjin and Shijiazhuang. lt is a medium-sized enterprise specializing in the design, production and sales of various wire mesh welding machines. It is specialized in manufacturing in steel mesh welding machine for steel wire CRB600, construction mesh welding machine, automatic chicken cage mesh welding machine, construction mesh welding machine, CNC fence mesh welding machine, Anti crack mesh welding machine, large coal mine support mesh welding machine, prefabricated slab component mesh welding machine, gantry pneumatic welding machine, large, medium and small reinforced steel bar straightening and cutting machine, and full-automatic warp and weft mesh welding machine for coal mine. Our factory has always served our customers with "excellent quality, reasonable price, considerate after-sales service". Our factory always strives for development by innovation and survival by reputation. In product development, we apply modern science and technology in combination with the application of actual demand, and develop products that adapt to the market in the 21st century. Our factory is constantly expanding the domestic and foreign markets with excellent quality, good reputation, high-quality service, and reasonable price. With strong scientific research and professional production as the backing, we have created one proud achievement after another. Our machines have been sold to major coal groups and metal mining enterprises, as well as to Southeast Asia, the Middle East, Europe, the United States, Africa and other countries. Our factory is willing to cooperate with you sincerely to create a brilliant tomorrow. We sincerely welcome friends from all walks of life at home and abroad to call us, negotiate business, and await your inquiries and patronage at any time. We believe that our products can bring you success. We assure you of our good service as our responsibility.
Our factory is the first one in Anping to achieve the welding speed at more than 96 times of welding per minute. So far, we have 12 national patent certificates and there are still another five patents in the process of applying.
Frequently asked question
Ask: What is the diameter of the welding wire in the machine?
Answer: 6-12 millimeters.
Ask: How long does it take for delivery?
Answer: 40-45 days.
Ask: Does your company provide machine transportation?
Answer: Yes, we will provide you with the most favorable shipping route based on the delivery address you provided.
Ask: What packaging is used for the machine?
Answer: Wrap the machine in cling film and place it in a container.
Ask: Are you a trading company or a factory? Where is the location of the unit?
Answer: Our factory has been established for over 20 years and has its own trading department. Our factory is located in Anping County, Hebei Province, China. The nearest airport is Beijing Airport or Shijiazhuang Airport. We can pick you up from Shijiazhuang city.
Ask: Can we arrange for engineers to install the machines we purchased?
Answer: Yes, our engineers have been to over 60 countries before. They are very experienced.
Ask: What is the guarantee time for your machine?
Answer: Our warranty period is 2 years after the machine is installed in your factory.
Ask: Can your products be exported for transportation?
Answer: Sure. We have rich experience in exports.
Ask: Can you provide us with the customs clearance documents we need?
Answer: Sure. We can provide relevant materials such as customs clearance documents, CE certificates, Form E, and certificates of origin.
If you are interested in our machine, please provide me with the machine: width, mesh size, wire diameter. I can provide you with a more accurate quotation and a precise drawing template for your reference
